Series Mini On-Off Battery Switch with Knob - Red

Product image 1
Product image 2
Product image 3
Product image 4

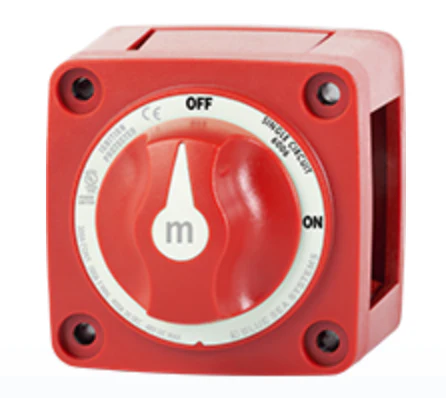

Series Mini On-Off Battery Switch with Knob - Red

Switches a single battery to a single load group
  • Ignition protected—safe for installation aboard gasoline powered boats

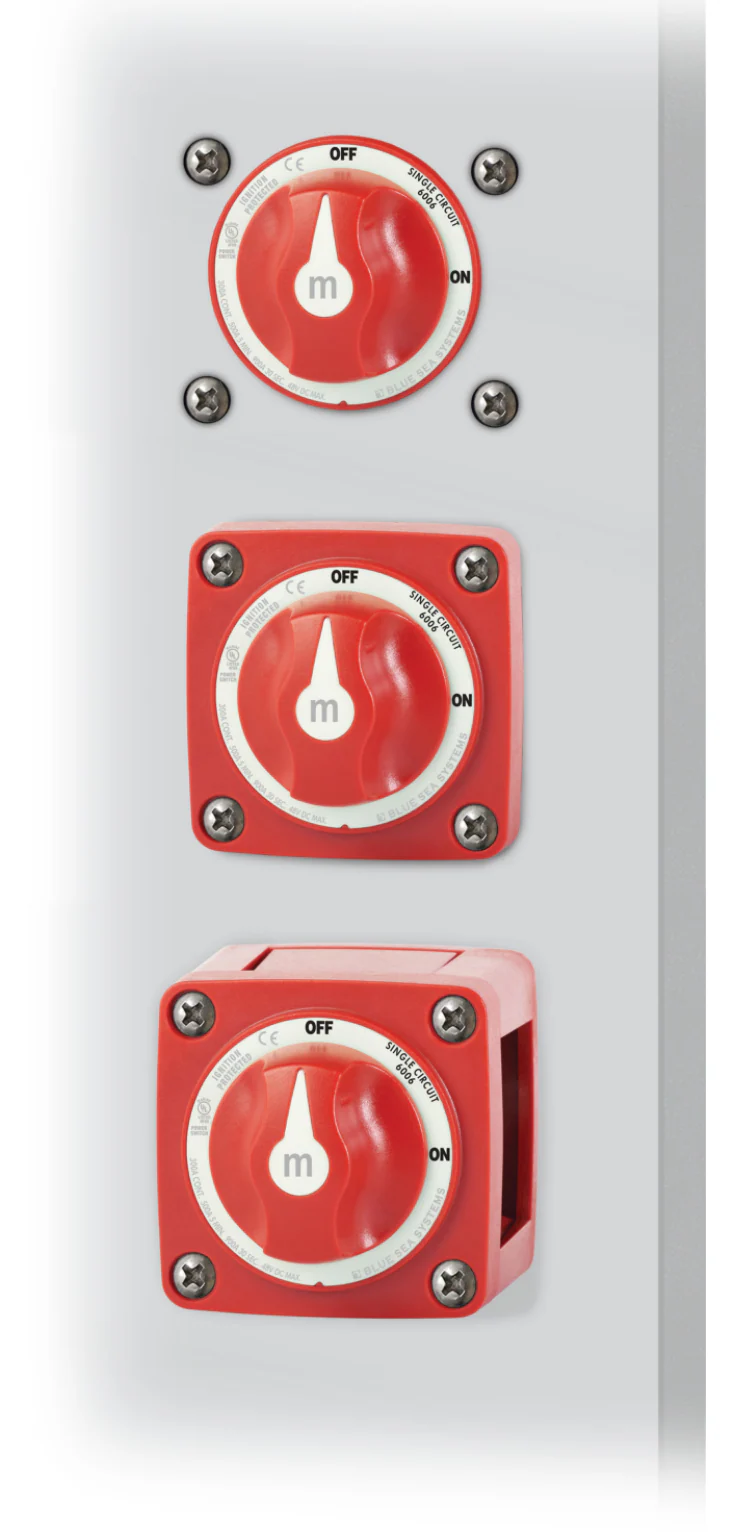

  • Case design allows surface, front panel, or rear panel mounting

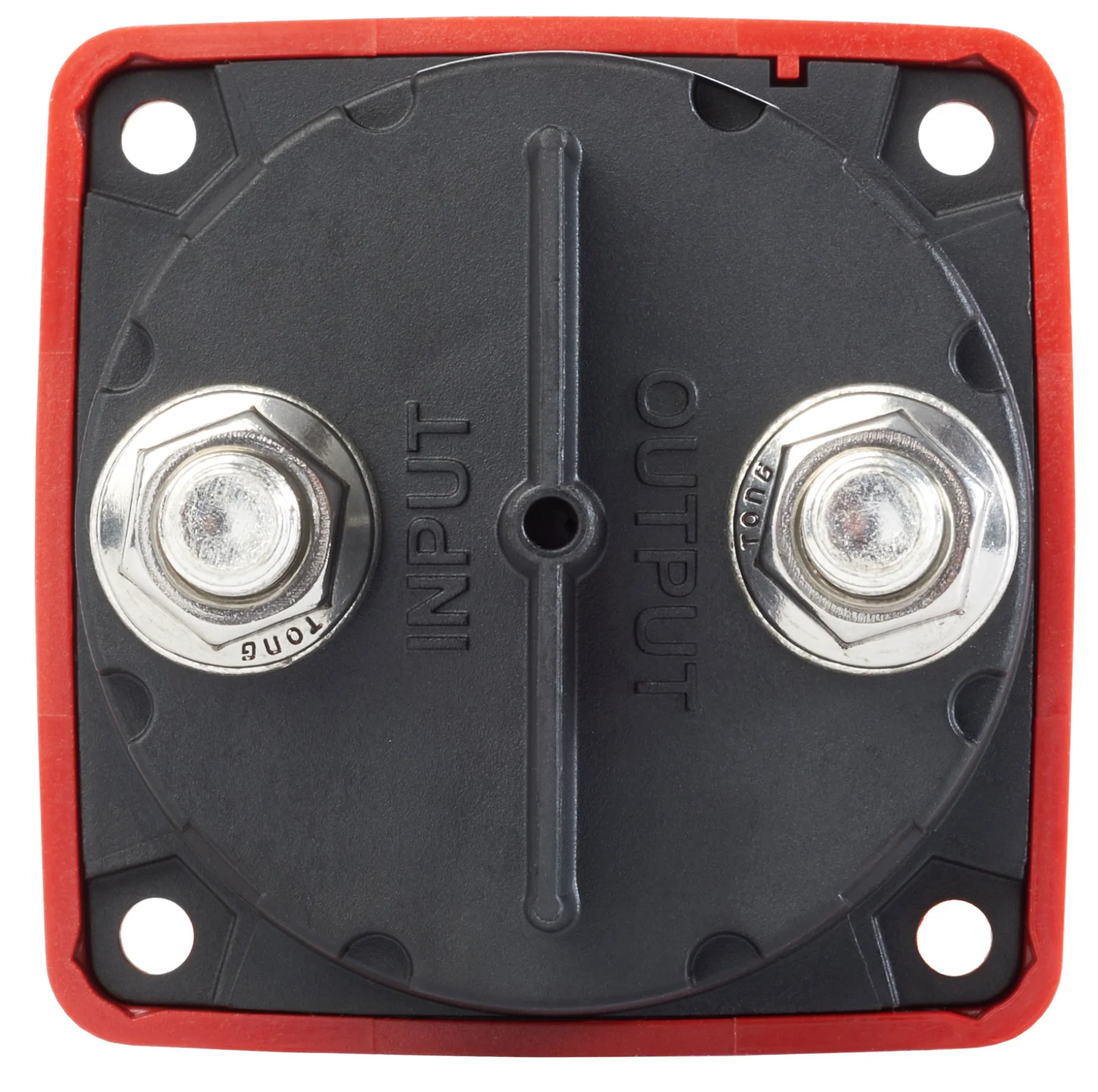

  • Isolating cover with snap-on sections protects rear contacts



Specifications
Switch Type  Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 48V DC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating  300A
Intermittent Rating  500A (5 min)
Cranking Rating 30 sec  900A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.65lb (0.29 kg)
$10.62

Original: $35.39

-70%
Series Mini On-Off Battery Switch with Knob - Red—

$35.39

$10.62

Product Information

Shipping & Returns

Description

Switches a single battery to a single load group
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts



Specifications
Switch Type  Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 48V DC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating  300A
Intermittent Rating  500A (5 min)
Cranking Rating 30 sec  900A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.65lb (0.29 kg)
